Anologue Phone Interface

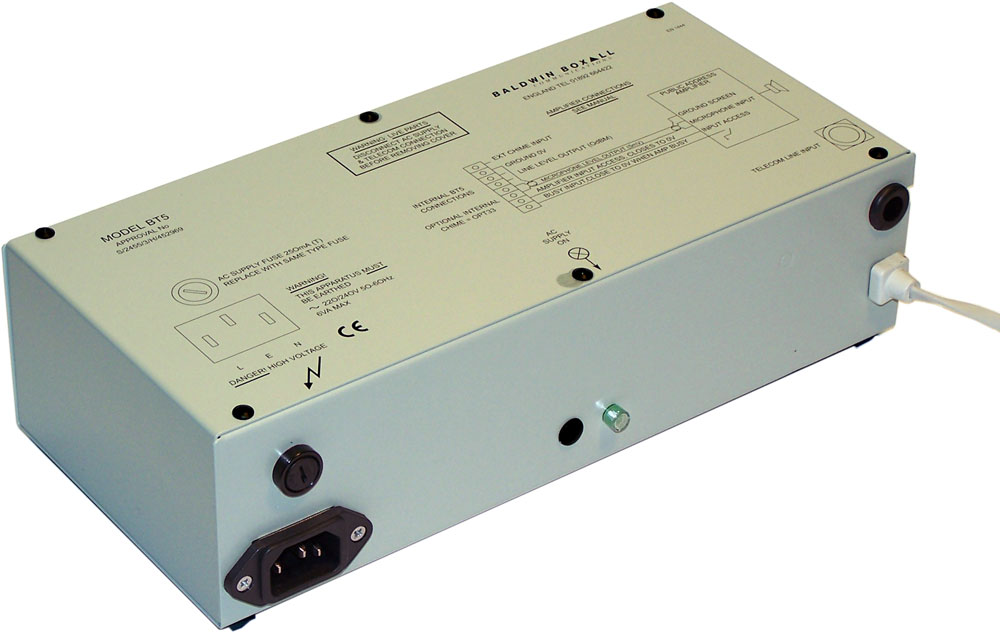

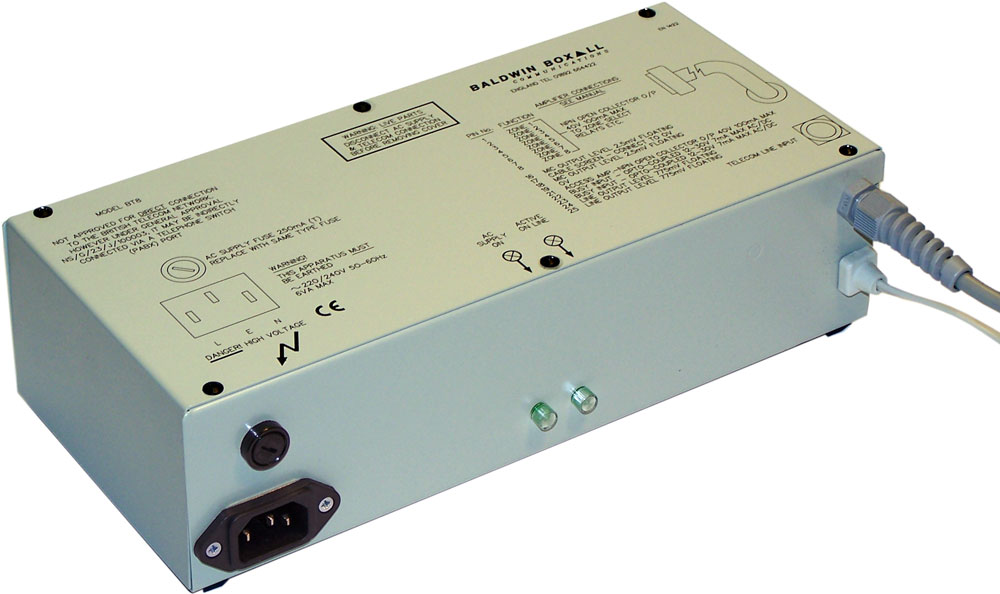

Code article : BT5, BT8
BT products are Telephone paging interface, they realize interface between the analogue telephone system and the public address system. Enable staff to make public address announcements from their own desk telephone by dialing into allocated extension number. This modules enable you to choose your annoucement's zone.
Caractéristiques | |
---|---|
Connector | SubD25 |
Output level mic BT5 | 5 mV à 22 Ohm |
Output level mic BT8 | 2.5 mV à 22 Ohm |
Amplifier access output | 1 x NPN open collector 40V @ 100mA max |
Power supply | 220/240V ; 50/60Hz |
