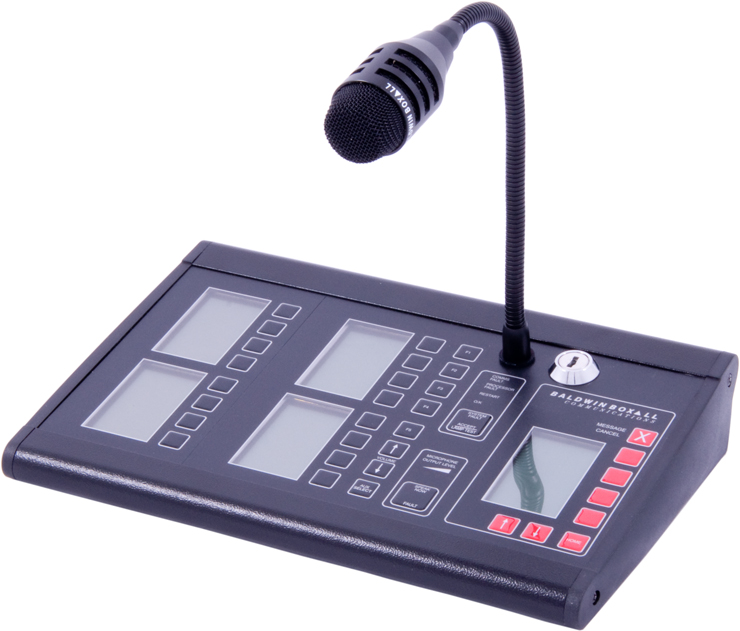

Voice Alarm Microphones Controller

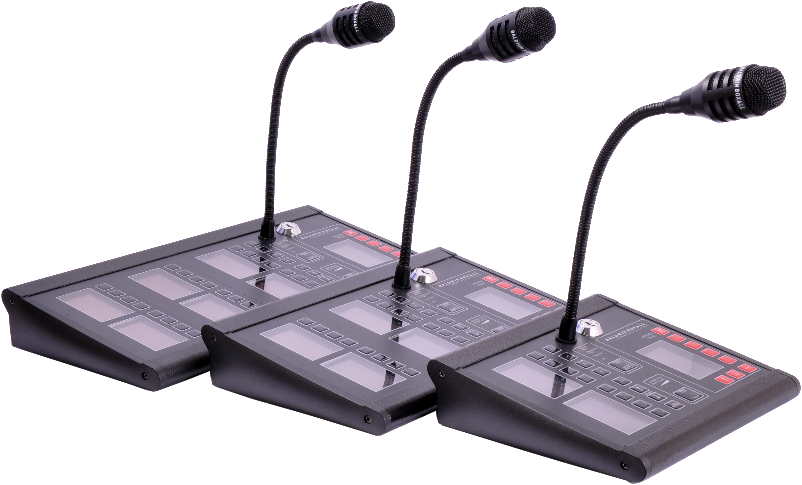

Code article : BVRD8, BVRD16, BVRD24, BVRD32, BVRD40, BVRD48, BVRD56, BVRD64
The BVRD microphone controller has been designed specifically for the Voice Alarm market and will interface with any of our IP products & the BV VIGIL routers.
Shape to the standards EN54-16, BS5839 part 8 and EN 60849, they offer to you a system in compliance with your requirements regarding fire safety.
| Caractéristiques | |
|---|---|
| Nominal output level | -10 dBM (2.5) |
| Max output level limiter operating | +18dBM |
| Output impedance | 8Ohm |
| Bandwidth | 100 Hz - 15 kHz |
| Serial port | RS485 9600 BBR (défaut) |
| Connectors | RJ45 |
| Mic output | 4 Leds indicating speech level |
| System fault/accept | System fault LED with ‘fault accept/lamp test’ button |
